Description

 Bobs Flagpole Company Presents The ZEUS 25' High Wind, 125 MPH Fiberglass Flagpole Collection.
Proudly Handmade in the USA!   Shipping Included 4 to 5 week delivery

SPECFICATIONS:

Please take note of the details below for the fiberglass reinforced composite (FRC) ground set flagpole Model #25X:

- Mounting height: 25', with 3' below grade for a total length of 28'.
- Butt diameter: 6", top diameter: 3"
- Pole weight: approximately 59 lbs, total shipping weight: 113 lbs

The flagpole is constructed of fiberglass woven roving and polyester resin, with 75% of the reinforcing fibers oriented in the axial plane for maximum stiffness and 25% in the radial plane for required hoop strength. Load calculations are based on AASHTO and NAAMM standards, with the pole designed with a 2:1 safety factor for 125 mph winds, unflagged, and a 1.3 gust factor.

The flagpole features an Entasis taper and is free of vertical mold seams. It is sanded smooth and coated with a high gloss Aliphatic Polyurea coating system, providing extended UV protection and weather resistance.

Aeolus Series - Model #25X

Standard Fittings:
25' Above Grade Height 6" Gold Anodized Ball 50' of #10 Polyester Halyard
28' Overall Height Cast FG Stationary Truck 16" Flash Collar Location:
Top Diameter - 3" 1 pair of Brass Snaps, 8.5" Nylon Cleat
Butt Diameter - 6" 1 pair of vinyl Snap covers, 3'x8" Ground Sleeve

Benefits of Fiberglass Composites

Key Features of Our Fiberglass Flagpoles:
- Lightweight and easy to install
- UV and salt-resistant coating ”“ dual part polyurea aliphatic paint system
- Non-conductive
- Finish does not pit or stain, even when exposed to landscape materials like mulch
- Corrosion-resistant
- Superior strength-to-weight ratio provided by layered construction of materials
- Excellent structural strength compared to wood, metal alloys, and others

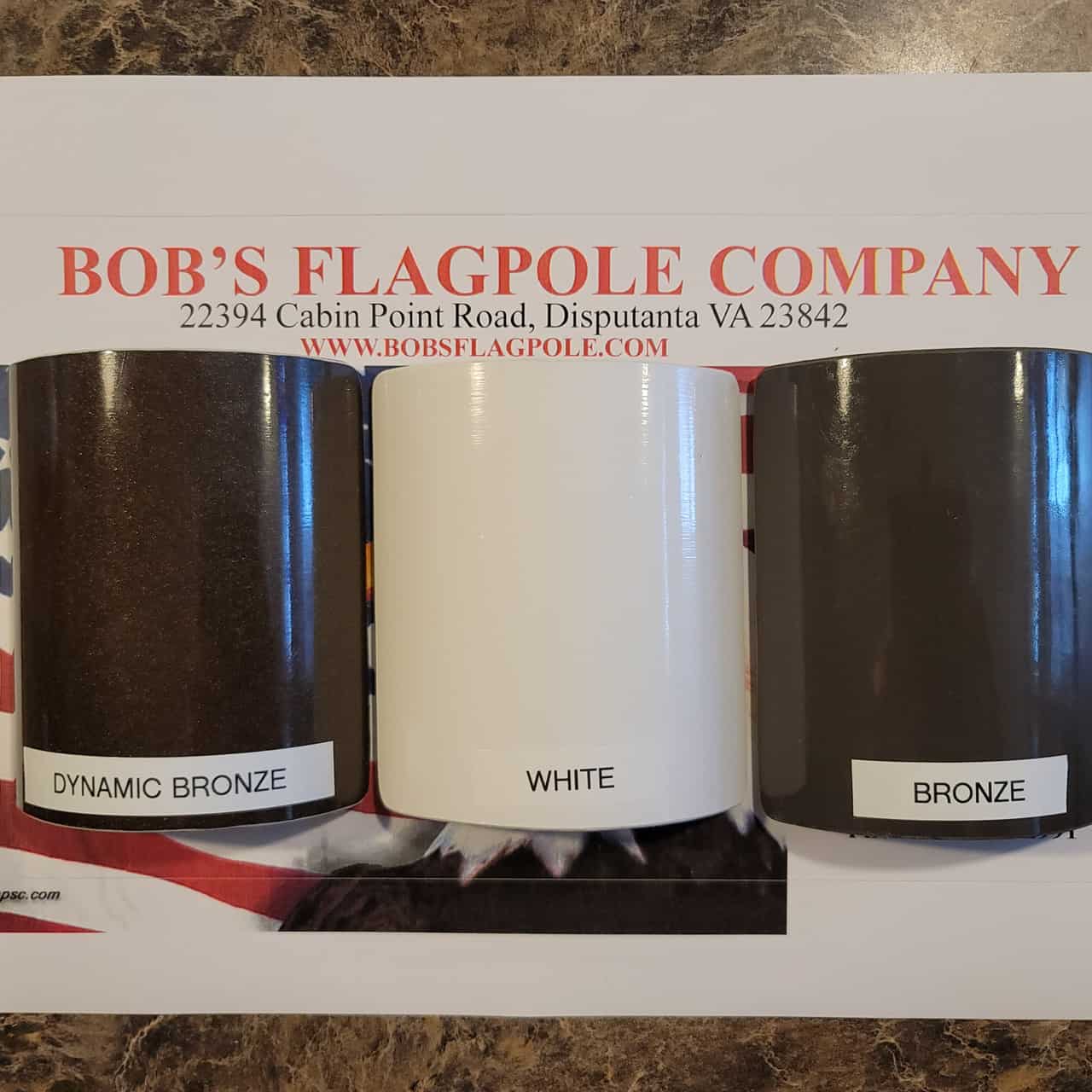

- Available in a variety of standard colors: white, black, bronze, Faux-Luminum & Dynamic Bronze
- Custom colors are also available upon request
- Unique manufacturing process allows for custom projects
- Sound-absorbing properties: perfect for homeowners, schools, office buildings, hospitals, and anywhere you do not want that annoying pinging sound of the flag snaps
- Easy to clean and virtually maintenance-free
- Best warranty in the fiberglass flagpole industry, with 50 years of experience to back it, the makers of Zeus flagpoles confidently offer the best fiberglass flagpole warranty
- Hand-crafted in Fitzwilliam, NH. These are not machine-made or mass-produced, providing you exceptional quality and attention to detail
- Available in sizes 15”™ ”“ 100”™ to suit your location
- Available in different series that are windspeed-specific to complement your location
- Fiberglass is not harmful to the environment; it can be repurposed into other usable items or recycled
